EXCEL - Costanzo - Top Stay Lift up System Nero Black Cover

EXCEL-COSTANZO-3200

EXCEL-COSTANZO-1800

EXCEL-COSTANZO-TOP STAY LIFT UP SYSTEM

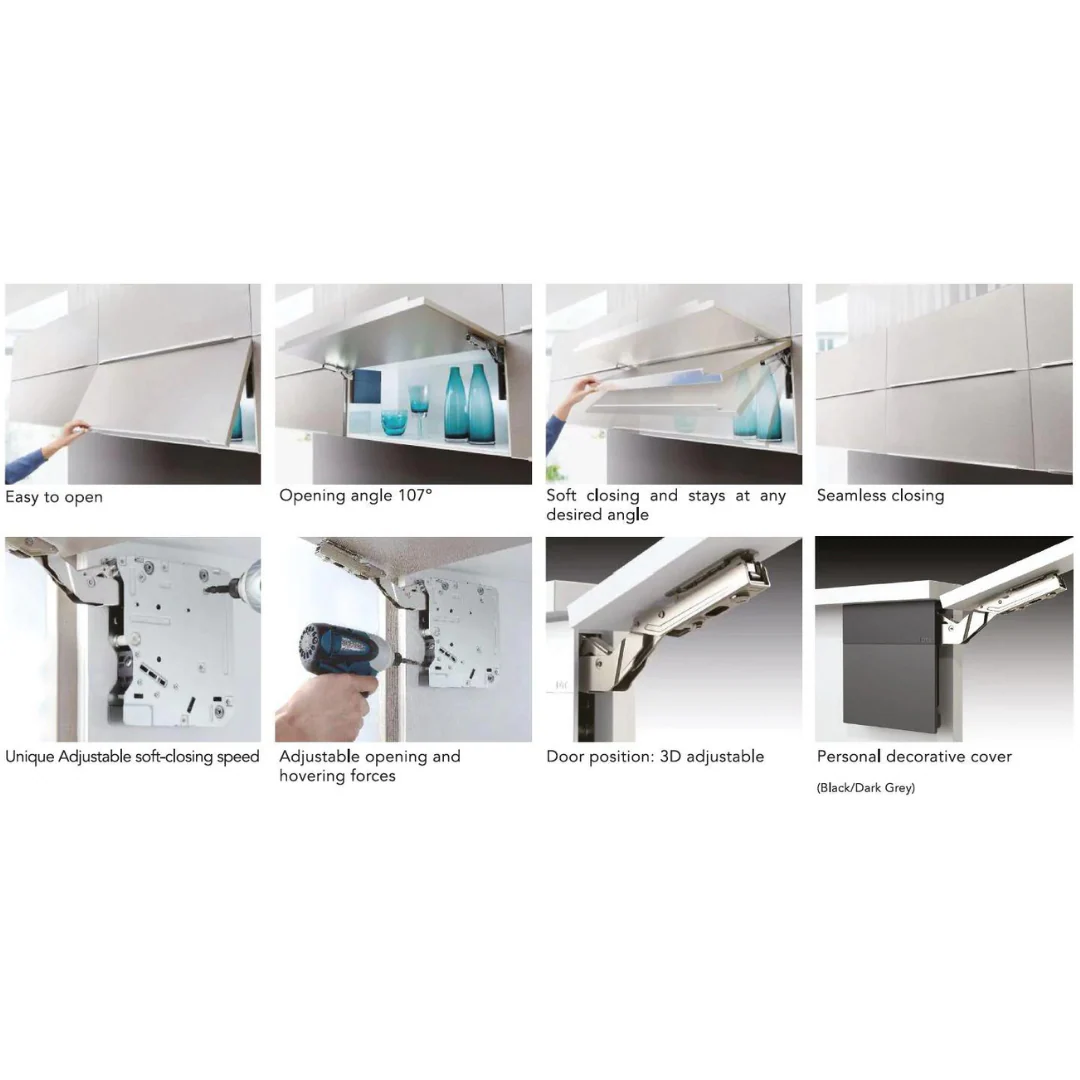

• Opening Angle 107°
• Silent and smooth ceiling
• Cabinet width up to 1200mm
• Cabinet height: 400-700mm
• Door thickness: 16-28mm
• Easy to open and stays at any desired position
• Adjustable soft-closing speed
• Adjustable opening and hovering forces
• Tool free assembly and removal
• Snap-fit mechanism for easy installation and dismantle
• 3D door adjustments: Height/Depth/Side adjustment +/- 2mm

The top stay lift-up system from Excel Costanzo is a brilliant piece of modern engineering which optimizes cabinet storage and facilitates ease of access through pneumatic arms-operated doors. You can order the system in heavy or medium-duty dimensional variants.

EXCEL - Costanzo - 3200 - (Heavy Duty)

• Power Factor LF 3200-9000
• Door weight 5-12kg
• Cabinet Height 550-700mm (Glass door)
• Cabinet Width 600-1000mm

EXCEL - Costanzo - 1800 - V2.0 (Medium Duty)

• Power Factor LF 1200-3200
• Door weight 2.5-5kg

Cabinet Height 400- 500 mm Cabinet Width 800-1000mm

Cabinet Height 500- 600 mm Cabinet Width 600-1000mm

Package Includes

• 1 pair of Costanzo lift up systems
• 2 Dark Grey Cover
• Fittings and screws

Specifications

• Download Test Report
• EXCEL- Costanzo - 3200 - HEAVY DUTY: Download Installation Manual
• EXCEL - Costanzo -1800 - MEDIUM DUTY: Download Installation Manual

EXCEL - Costanzo - 1800 - (Medium Duty)

Old Version (Discontinued)

• Power Factor LF 1800-3500
• Door weight 3-5kg
• Cabinet Height 500- 600mm
• Cabinet Width 750-1000mm
