EXCEL - Orietto Italian Series Sus304 4 sided Slimline Slabs Pull Out

• Material: Stainless Steel SUS304
• Finishing: Stainless Steel
• Max Weight: 25kg
• Soft Closing Function

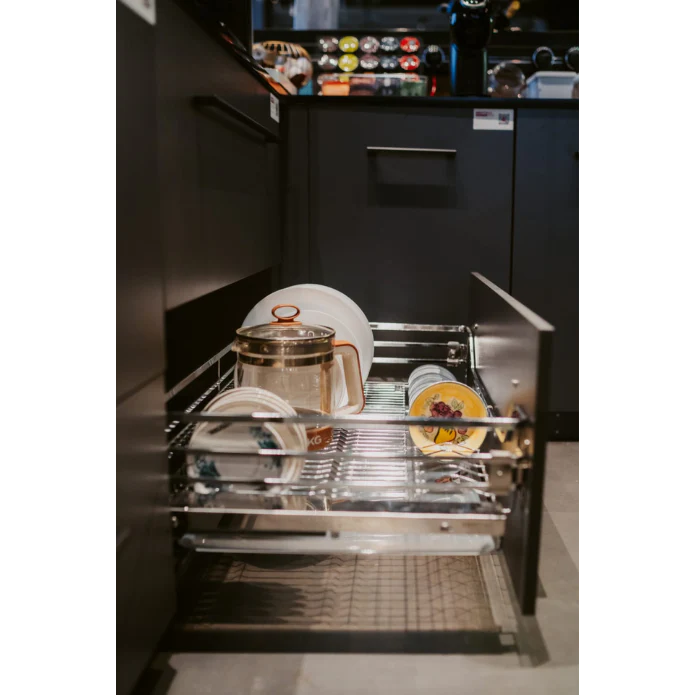

Great for tight and limited kitchen spaces, The Italian series Slim line Slab Pull Out was designed with practicality and ergonomics in mind. There are two slabs on either side of the central support and features a durable and lustrous structure that prevents damage & discolouration over a period of time. This product is also practically noiseless due to the sound damping technique used to muffle discordant noise. Easy assembling and disassembling of the product also allows for the ease of cleaning and washing.

Measurements

Inner cabinet height Min.：220mm, increased height based on user requirements.

400: Basket Size

Depth	Width	Height	Inner Cabinet
465mm	338mm	130mm	W=364mm (+/-4mm) D=500mm+ H=220mm+

450: Basket Size

Depth	Width	Height	Inner Cabinet
465mm	388mm	130mm	W=414mm (+/-4mm) D=500mm+ H=220mm+

500: Basket Size

Depth	Width	Height	Inner Cabinet
465mm	438mm	130mm	W=464mm (+/-4mm) D=500mm+ H=220mm+

600: Basket Size

Depth	Width	Height	Inner Cabinet
465mm	538mm	130mm	W=564mm (+/-4mm) D=500mm+ H=220mm+

800: Basket Size

Depth	Width	Height	Inner Cabinet
465mm	738mm	130mm	W=764mm (+/-4mm) D=500mm+ H=220mm+

900: Basket Size

Depth	Width	Height	Inner Cabinet
465mm	838mm	130mm	W=864mm (+/-4mm) D=500mm+ H=220mm+

Specifications

• Download Installation Manual

Additional Features

• Set Includes:
• 1 Tier Wire Basket
• Drawer Runner
• Drawer Runner Cover
• Screws and fittings
• Water Drip Tray
• Brackets
