Rotarello Rotating Cabinet System
Rotarello™ is a precision-engineered rotating cabinet system designed to transform conventional cabinetry into concealed, space-efficient storage. With a smooth 360° continuous rotation mechanism, Rotarello allows cabinets to open, close, and realign seamlessly—revealing or hiding storage with a single motion.
Designed for modern interiors, Rotarello enhances functionality without visual clutter, making it ideal for living rooms, kitchens, islands, and feature cabinetry. Its robust load capacity and accurate positioning ensure long-term reliability, even in tall cabinet applications.
Key Features
- 360° Infinite Rotation: Rotate 180° to open, rotate another 180° to close—continuous full rotation supported.
- Hidden Cabinet Solution: Conceals storage when closed for a clean, minimalist façade.
- Space-Efficient Design: Maximizes usable storage within compact footprints.
- Smooth & Stable Operation: Precision guide system ensures balanced, controlled rotation.
- High Load Capacity: Supports up to 80kg.
- Easy Installation & Fine Adjustment: Adjustable regulators allow accurate alignment after installation.
- Suitable for Tall Cabinets: Ideal for floor-to-ceiling applications.
Technical Specifications
- Product Type: Rotating cabinet hardware system
- Rotation Angle: 360° continuous
- Opening Method: Manual rotation
- Maximum Load: 80kg
-
Recommended Cabinet Height:
- Minimum: 400mm
- Maximum: 2300mm
Cabinet Size Compatibility
Inner Cabinet Size
-
Width / Depth:
- Min: 400 × 400 mm
- Max: 430 × 430 mm
Outer Cabinet Size
-
Width / Depth:
- Min: 405 × 405 mm
- Max: 435 × 435 mm
Height Configuration
-
L1 (Fixed Cabinet Inner Height):
- Min: 400 mm
- Max: 2300 mm
-
L2 (Rotating Cabinet Height):
- L2 = L1 − 10 mm (recommended clearance)
Installation Requirements
- Center Hole: Ø20 mm (required on mounting surface)
- Top Mounting Surface Thickness: Max 20 mm
- Mounting Type: Top & bottom guide plates
- Adjustment: Left / Right / Center fine-tuning via regulators
Application Areas

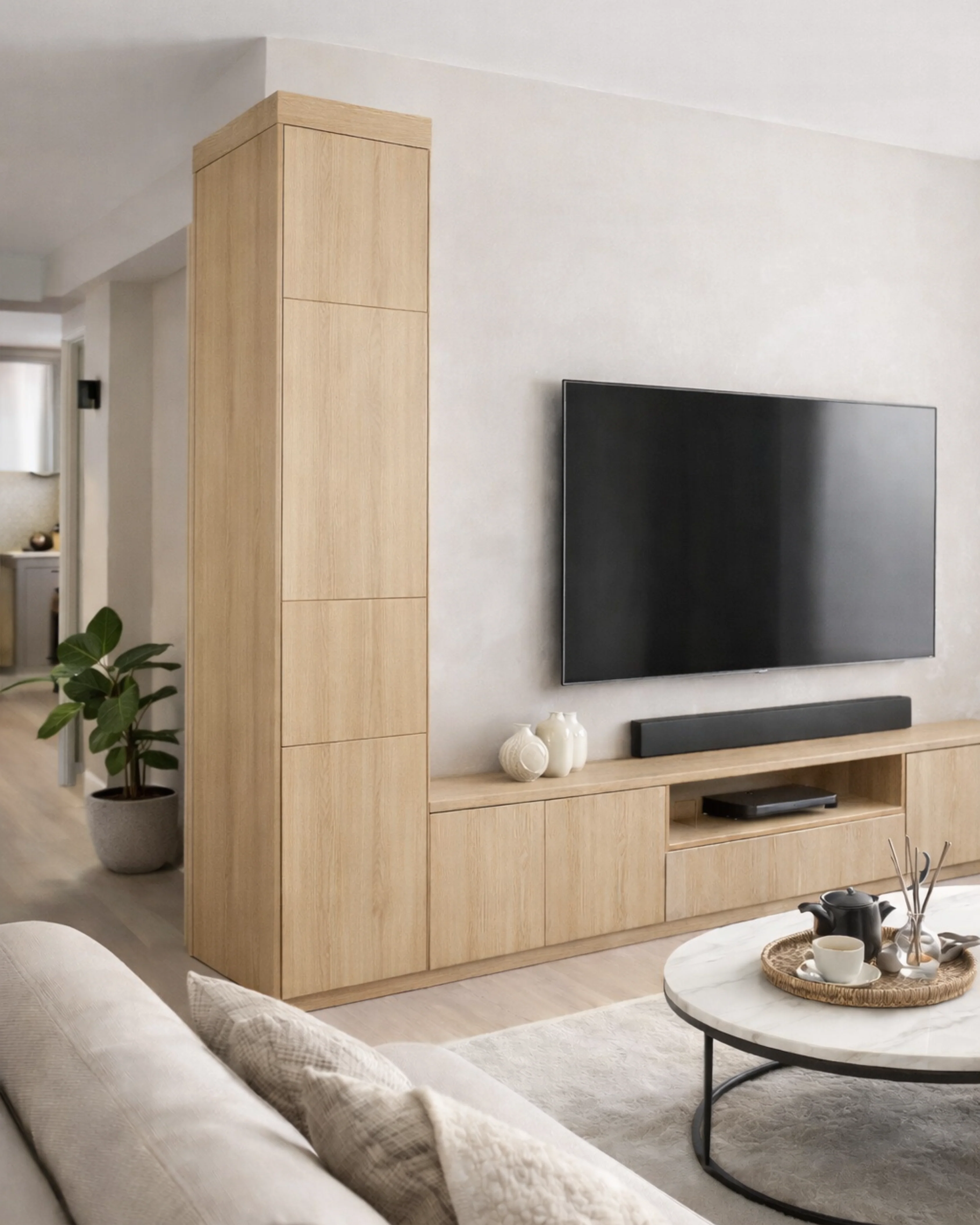

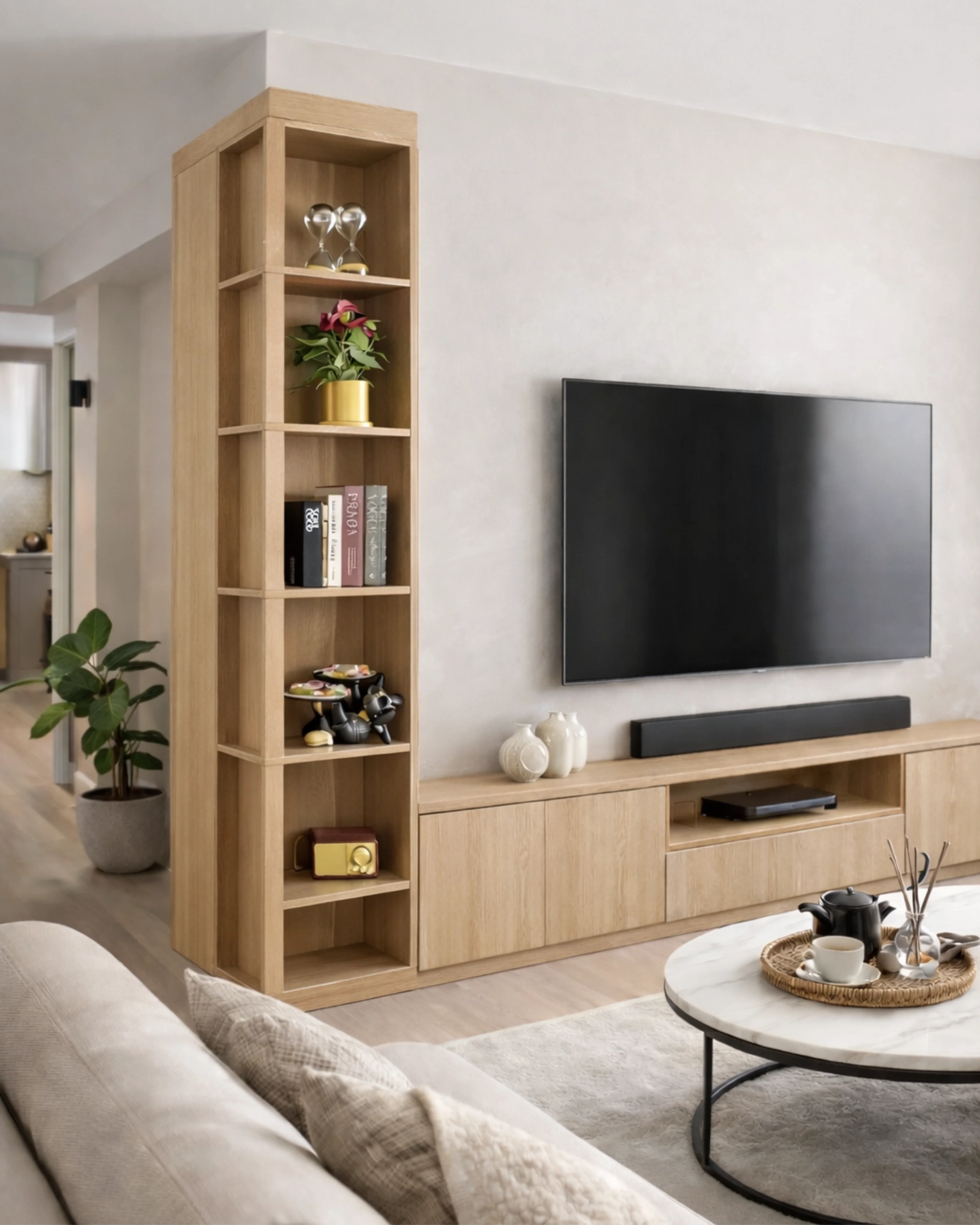

- Living room TV feature cabinets
- Open-concept kitchen islands
- Display cabinets
- Hidden storage systems
- Designer feature cabinetry

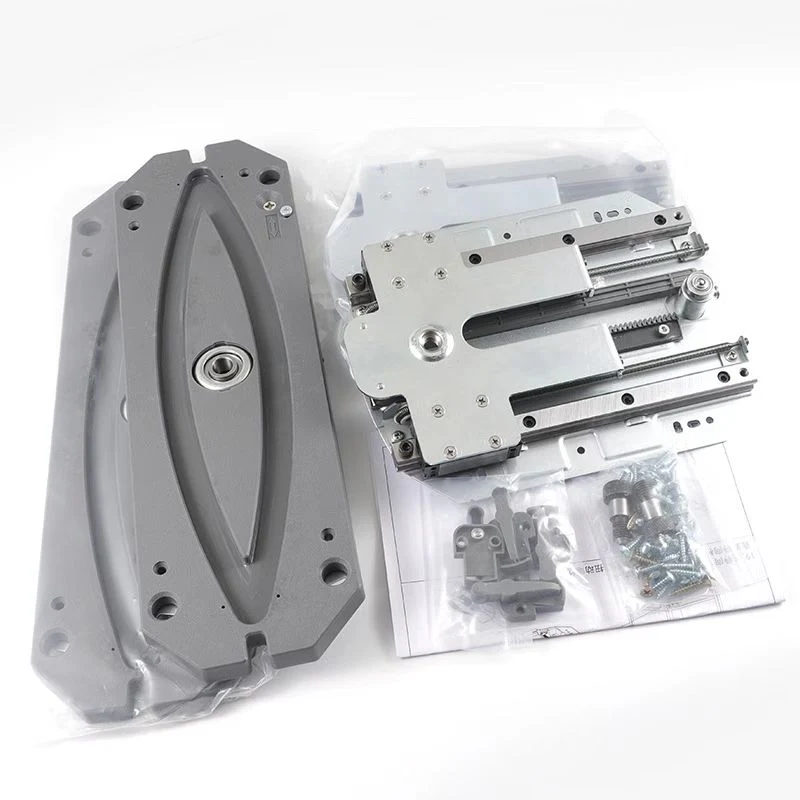

What’s Included
- Top rotating guide assembly
- Bottom rotating guide assembly
- Regulators & guide wheels
- Mounting screws
- Sealing plates
Specifications and Installation Manual
Original: $1,309.38
-65%$1,309.38
$458.28
Description
Rotarello™ is a precision-engineered rotating cabinet system designed to transform conventional cabinetry into concealed, space-efficient storage. With a smooth 360° continuous rotation mechanism, Rotarello allows cabinets to open, close, and realign seamlessly—revealing or hiding storage with a single motion.
Designed for modern interiors, Rotarello enhances functionality without visual clutter, making it ideal for living rooms, kitchens, islands, and feature cabinetry. Its robust load capacity and accurate positioning ensure long-term reliability, even in tall cabinet applications.
Key Features
- 360° Infinite Rotation: Rotate 180° to open, rotate another 180° to close—continuous full rotation supported.
- Hidden Cabinet Solution: Conceals storage when closed for a clean, minimalist façade.
- Space-Efficient Design: Maximizes usable storage within compact footprints.
- Smooth & Stable Operation: Precision guide system ensures balanced, controlled rotation.
- High Load Capacity: Supports up to 80kg.
- Easy Installation & Fine Adjustment: Adjustable regulators allow accurate alignment after installation.
- Suitable for Tall Cabinets: Ideal for floor-to-ceiling applications.
Technical Specifications
- Product Type: Rotating cabinet hardware system
- Rotation Angle: 360° continuous
- Opening Method: Manual rotation
- Maximum Load: 80kg
-
Recommended Cabinet Height:
- Minimum: 400mm
- Maximum: 2300mm
Cabinet Size Compatibility
Inner Cabinet Size
-
Width / Depth:
- Min: 400 × 400 mm
- Max: 430 × 430 mm
Outer Cabinet Size
-
Width / Depth:
- Min: 405 × 405 mm
- Max: 435 × 435 mm
Height Configuration
-
L1 (Fixed Cabinet Inner Height):
- Min: 400 mm
- Max: 2300 mm
-
L2 (Rotating Cabinet Height):
- L2 = L1 − 10 mm (recommended clearance)
Installation Requirements
- Center Hole: Ø20 mm (required on mounting surface)
- Top Mounting Surface Thickness: Max 20 mm
- Mounting Type: Top & bottom guide plates
- Adjustment: Left / Right / Center fine-tuning via regulators
Application Areas
- Living room TV feature cabinets
- Open-concept kitchen islands
- Display cabinets
- Hidden storage systems
- Designer feature cabinetry
What’s Included
- Top rotating guide assembly
- Bottom rotating guide assembly
- Regulators & guide wheels
- Mounting screws
- Sealing plates
